Feed & Biomass Pellet Machines

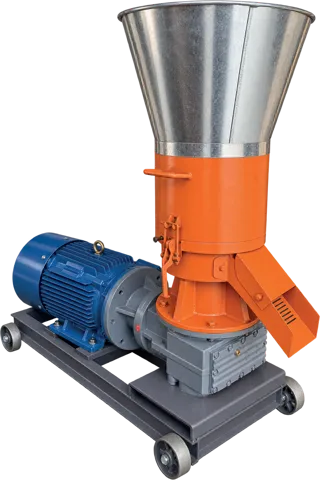

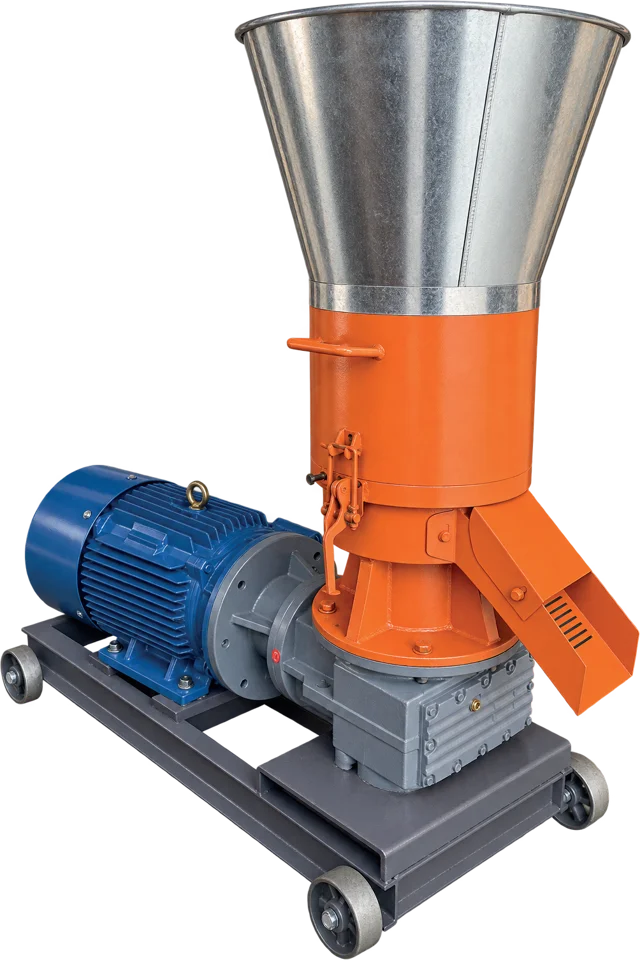

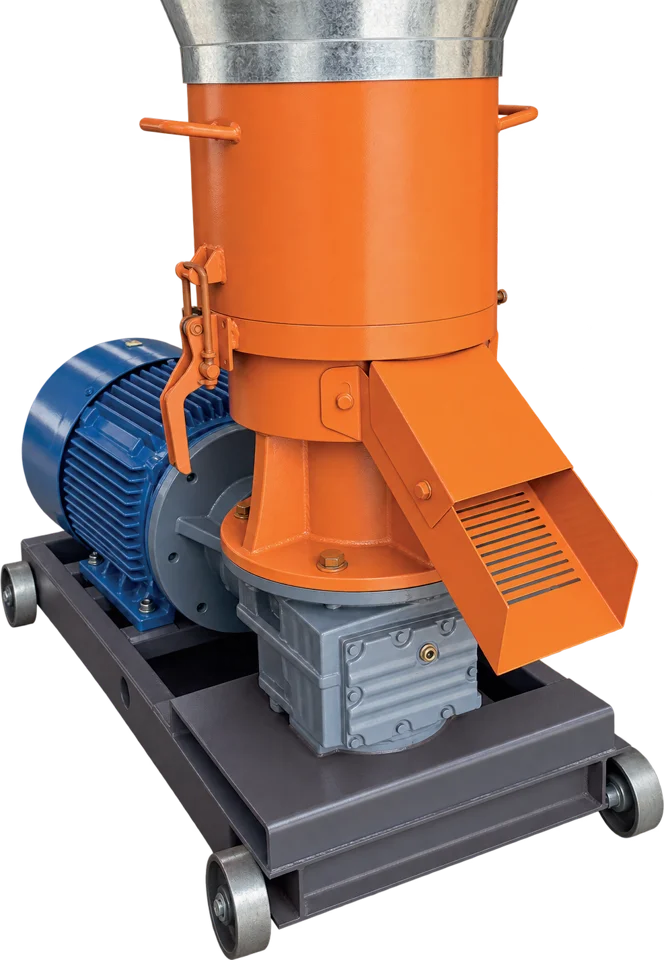

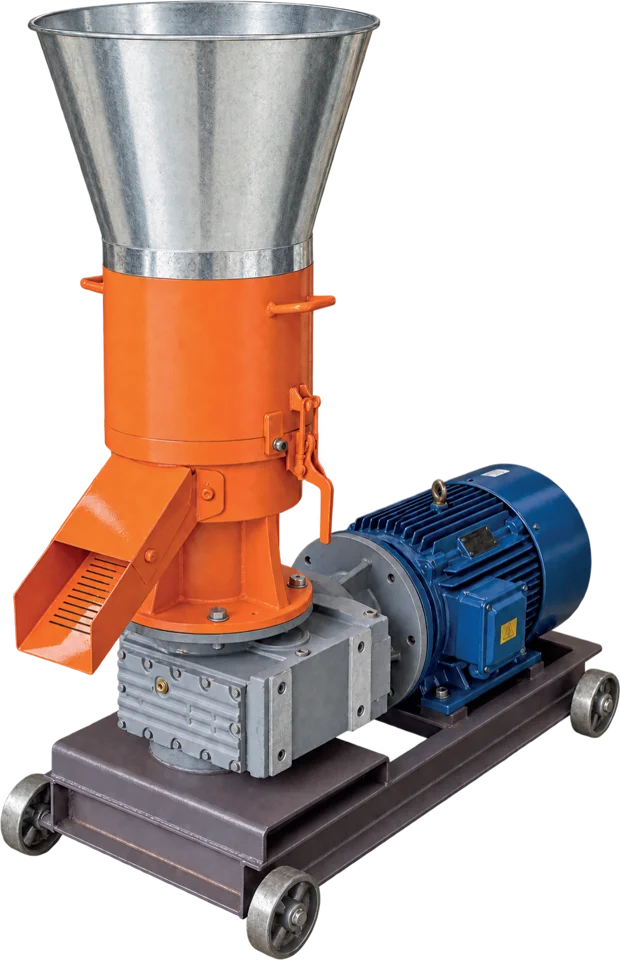

WY-KL300S Biomass fuel pellet machine
The WY-KL300S Biomass fuel pellet machine from VYMOR has 22 kW power and a capacity of 500-800 kg/h.
Power22 kW
Capacity500-800 kg/h
Weight466 kg
Prices depend on configuration, quantity and destination. Trade terms (EXW / FOB / CIF) and payment terms are confirmed in the quotation.
Specifications
| Capacity | 500-800 kg/h |
|---|---|
| Power | 22 kW |
| Power supply | 380 V / three phase / 50 Hz |
| Rated current | 41.8 A |
| Motor speed | 1470 rpm |
| Machine dimensions | 1780 × 610 × 1470 mm |
| Weight with motor | 466 kg |
| Standard pellet diameter | 8 mm (diameter set by die hole; pellet length: confirm with a trial sample) |
| Uses | pellet furnaces / pellet fireplaces / pellet grills* (*grills: suitable cooking-grade wood pellets; match fuel to appliance requirements). Catal |
Details
- Working process: Raw materials: straw / wood shavings / sawdust / wood offcuts — chop / grind oversized material; adjust moisture before pelletizing. Prepare (reduce size / condition) > feed > press (rollers compress biomass through die holes to form cylinders) > finish (cool / screen pellets).
- ogue illustration / reference configuration.
Specifications are taken from the VYMOR product catalogue. Output depends on material, moisture and machine setup; confirm suitability and output with a trial sample.
Related models
Photo on request
Frequently asked questions
How do I know the machine suits my material and output?
Material illustrations and process symbols in the catalogue are for reference. Confirm suitability and output with a trial sample; the sample, configuration and acceptance requirements are agreed before production.
How do I get a quotation?
Share your models, quantities and destination, and we will prepare a tailored quotation. Trade terms (EXW / FOB / CIF) and payment terms are confirmed in the quotation. Website: www.weiyanmachinery.com
Lead time?
From order to shipment: 15–35 days typical lead time.
Final delivery schedule depends on order quantity.
Packing and shipment arrangements are confirmed for each order.
Trade terms?
Flexible trade terms: EXW / FOB / CIF.
Choose the delivery terms that suit your sourcing plan.
Payment terms are confirmed in the quotation.
Tell us your model, quantity and destination
We prepare a tailored quotation with trade terms (EXW / FOB / CIF). Trial samples can be arranged before a bulk order.
